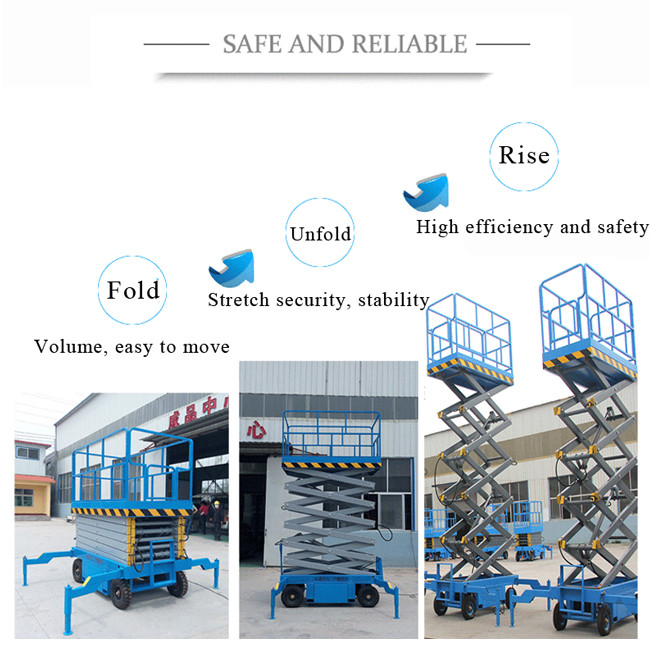

Shear Fork Self-Propelled Lift Lifting Platform Electro-Hydraulic Automatic Vehicle-Mounted Mobile Aerial Operation
Standard Features:
With CE certification,meet EN 1570 ANSI/ASME safety standards.
Convenient electric and hydraulic system and scissor design for easy lifting,lowering.
AC 110/220/380/460V,50/60Hz power supply,low-tention (24V) control box.
Applicable to various industries,expecially in warehousing,logistics,manufacturing industies.
Custom design and specs available.
1, Maintenance introduction
a. Wheels, countershafts and bearings, cylinder pin and bearing, jib hinge shaft and bearing wear.
b. All parts are filled with some lubricants to extend the service life of bearings.
c. Hydraulic oil and oil level. Lifting platform throughout the rise, in this position, the hydraulic floor should be higher than the bottom 40 to 50 mm. If it is found that the hydraulic oil is dark, sticky or gravel and other foreign objects should be promptly replaced (winter replacement 32 # hydraulic oil, summer 46 # hydraulic oil. In particularly cold northeast, should be replaced transformer hydraulic oil).
2, Mid-year inspection
a, According to the order of six months or 500 hours prioritized.
b, The whole platform will rise and fall, into a brace.
| Model | Lifting heig(m) | Capacity(kg) | Table size(mm) | Power |
| SJY03-4 | 4 | 300 | 2100*820 | 380V/1.1KW |
| SJY-03-6 | 6 | 300 | 2100*820 | 380V/1.1KW |
| SJY-05-6 | 6 | 500 | 2100*820 | 380V/1.1KW |
| SJY-03-8 | 8 | 300 | 2100*900 | 380V/1.5KW |
| SJY-05-8 | 8 | 500 | 2100*900 | 380V/1.5KW |
| SJY1-8 | 8 | 1000 | 2100*1200 | 380V/3KW |
| SJY03-10 | 10 | 300 | 2100*1200 | 380V/2.2KW |
| SJY05-10 | 10 | 500 | 2100*1200 | 380V/2.2KW |
| SJY1-10 | 10 | 1000 | 2100*1500 | 380V/3KW |
| SJY03-12 | 12 | 300 | 2550*1500 | 380V/3KW |
| SJY05-12 | 12 | 500 | 2550*1500 | 380V/3KW |
| SJY1-12 | 12 | 1000 | 2550*1500 | 380V/4KW |
| SJY03-14 | 14 | 300 | 2900*1500 | 380V/3KW |
| SJY05-14 | 14 | 500 | 2900*1500 | 380V/3KW |
| SJY01-14 | 14 | 1000 | 2900*1500 | 380V/4KW |
| SJY03-16 | 16 | 300 | 3000*1600 | 380V/4KW |
| SJY05-16 | 16 | 500 | 3000*1600 | 380V/4KW |
| SJY03-18 | 18 | 300 | 3200*1600 | 380V/4KW |
| SJY05-18 | 18 | 500 | 3200*1600 | 380V/4KW |
| SJY03-20 | 20 | 300 | 3200*1600 | 380V/4KW |
FAQ
1. Loading capacity----200KG, 250KG OR 300KG......?
2. The size of the table-----?
3. Working height------3m, 6m, 10m, 12m......?
